Woodward Fab - Tubing Die 1in X 3in X 180 Degree
The Woodward Fab Tubing Die 1in X 3in X 180 Degree is a high-quality die set designed for precise bending of 1-inch OD tubing up to 180 degrees with a 3-inch centerline radius.
Specification
Brand
Woodward Fab
Item Number
WWFWFBDT1X3-180
Tubing Outside Diameter
1 inch
Bend Angle
180 degrees
Centerline Radius
3 inches
Material
Steel
Compatibility
WFB2 Manual Machine, WFPB1000 Hydraulic Bender
Included Components

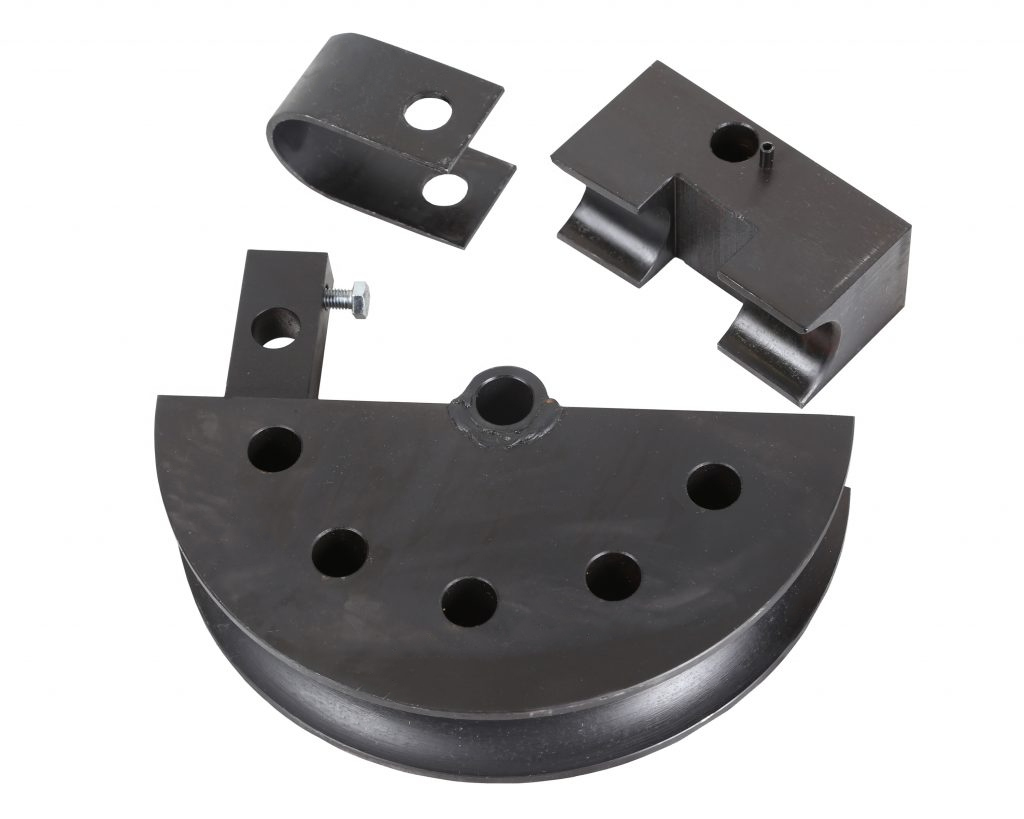

Main die, follower die, retaining strap
Minimum Wall Thickness for DOM
0.065 inches
Minimum Wall Thickness for ERW/SS
0.083 inches
Minimum Wall Thickness for Aluminum
0.095 inches
Maximum Wall Thickness
0.134 inches
Dimensions
9.9 x 8.5 x 4.7 inches
Weight
Approximately 12 pounds
Description
Enhance your metal fabrication capabilities with the Woodward Fab Tubing Die 1in X 3in X 180 Degree. This durable die set allows for accurate bending of 1-inch outside diameter tubing up to 180 degrees, featuring a 3-inch centerline radius. Constructed from robust steel, it includes the main die, follower die, and retaining strap, ensuring consistent and reliable bends. Compatible with Woodward Fab's WFB2 Manual Machine and WFPB1000 Hydraulic Bender, this die set is ideal for professionals seeking precision and efficiency in their projects.
Disclaimer
Ensure compatibility with your specific tubing bender model before purchase. Always follow safety guidelines and equipment instructions during operation.
