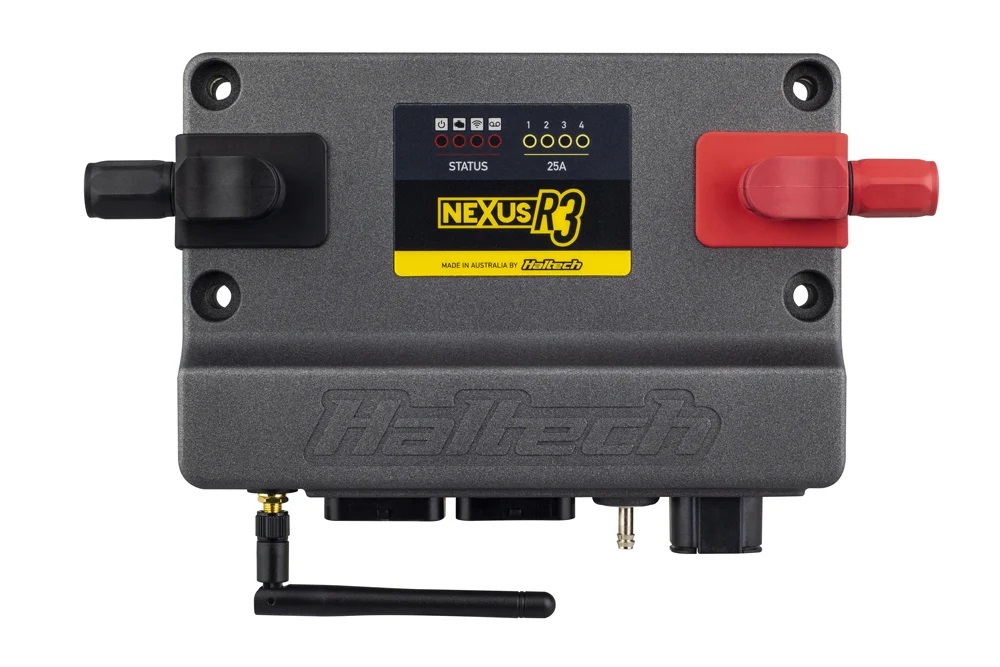

Haltech - Nexus R3 VCU

Haltech - Nexus R3 VCU

The Haltech Nexus R3 VCU is a comprehensive Vehicle Control Unit integrating engine management, power distribution, data logging, and wideband control into a single device.
$ 2,399.00 $ 2,399.00

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specification

Brand
Haltech
Item Number
HTHHT-193000
Part Name
Nexus R3 VCU
Dimensions
9.0 x 9.0 x 2.5 inches
Weight
Not specified
Supported Engines
Up to 8 cylinders or 4 rotors
Outputs
4 x 25A push-pull PWM capable outputs, 8 x peak/hold injector drivers, 8 x low current ignition outputs, 6 x low side drive outputs, 6 x push-pull/h-bridge outputs
Inputs
11 x 0-5V analog inputs, trigger and home inputs with differential inputs, 6 x synchronous pulsed inputs
On-Board Sensors
1 x wideband controller supporting NTK and LSU4.9, 1 x 4 bar MAP sensor
Communication Ports
2 x CAN ports with switchable termination
Features
Long term learning, stepper motor control, 4D closed loop boost control, closed loop CO2 control, rotational idle, launch control, traction control, anti-lag, dual knock control, trans brake control, race timer, multi-stage fuel injection, multi-level engine protection, 6-stage nitrous control, 4-sensor variable cam control, intake air bleed control, flat shift control, shock travel & ride height control, advanced torque management, on-board Wi-Fi, on-board data logging (128MB)
Automatic Transmission Control
Ford AODE/4R70W, GM 4L60E, GM 4L80E, Toyota A340E, Lenco, Liberty
Included Accessories
SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C cable, USB-C dust cap, USB drive with NSP Software

Description

The Haltech Nexus R3 VCU is a state-of-the-art Vehicle Control Unit that combines the functionalities of an engine management system, power distribution module, data logger, and wideband controller into one powerful device. Designed for engines with up to 8 cylinders or 4 rotors, it offers advanced race features, data logging, and power management control, making it ideal for high-performance racing applications.

Disclaimer

In many states, it is unlawful to tamper with your vehicle's emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway. Using Haltech products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists. It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using, or installing any Haltech product.
