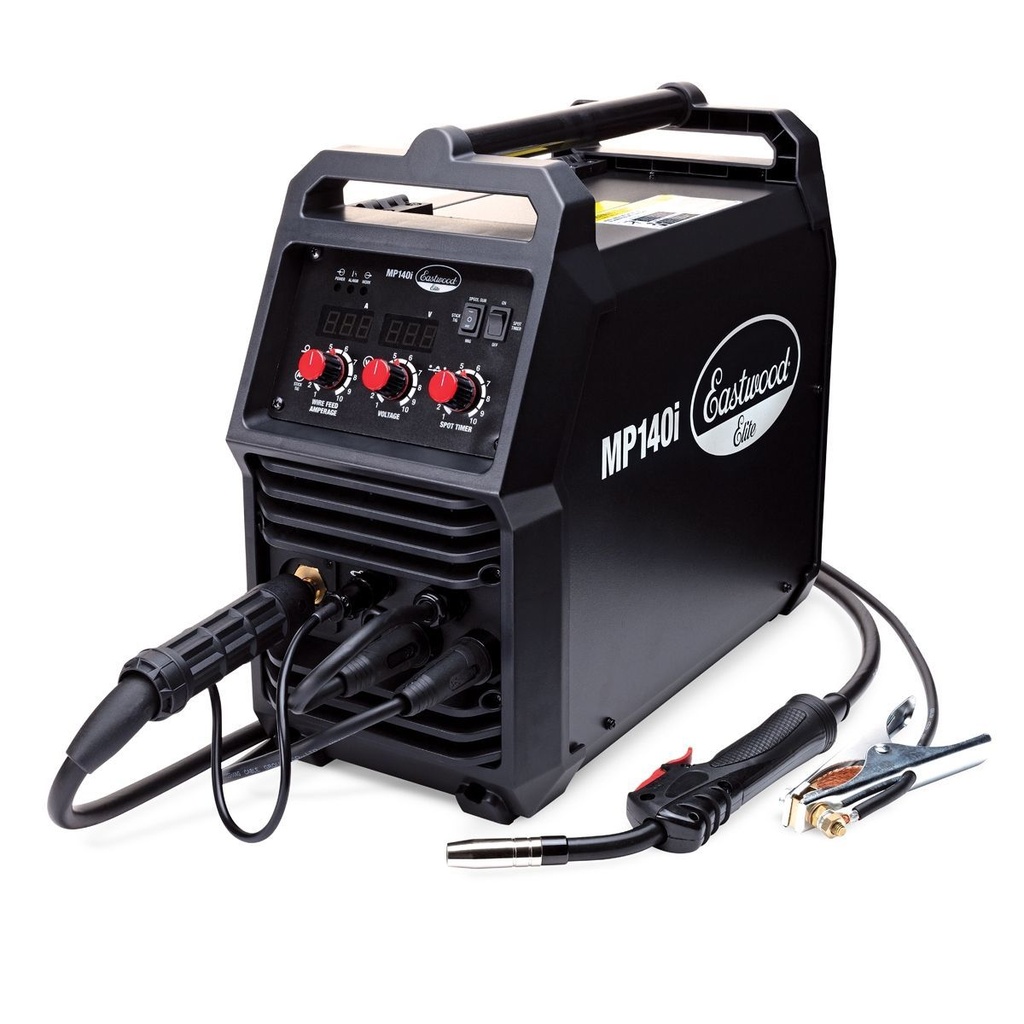

Eastwood - Welder Multi-Process 140 Amp Mig / Tig / Stick

Eastwood - Welder Multi-Process 140 Amp Mig / Tig / Stick

The Eastwood Elite MP140i Multi-Process Welder is a versatile 140-amp machine capable of MIG, TIG, flux-core, and stick welding, designed for both beginners and professionals.
$ 599.99 $ 599.99

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specification

Brand
Eastwood
Item Number
20559
Input Power
120V AC
Frequency
50/60 Hz
Rated Input Current
20 Amps
No-Load Voltage
68 Volts
Rated Working Voltage
18.5 Volts
MIG Welding Current
30–140 Amps
TIG Welding Current
20–70 Amps
Stick Welding Current
30–70 Amps
Rated Duty Cycle
30% at 90 Amps
Weight
34 lbs
Dimensions
23.0 x 20.0 x 18.0 inches
MIG Welding Wire Sizes
Solid: 0.023–0.035 inches (0.6–0.9mm); Stainless: 0.023–0.035 inches (0.6–0.9mm); Flux Core: 0.030–0.035 inches (0.8–0.9mm)
Spool Gun Welding Wire Sizes
4043 Aluminum: 0.030–0.035 inches (0.8–0.9mm)
ARC Welding Rods
E6010: 1/16-inch, 3/32-inch, 1/8-inch (Polarity: DCEN); E6011: 1/16-inch, 3/32-inch, 1/8-inch (Polarity: DCEN); E6013: 1/16-inch, 3/32-inch, 1/8-inch (Polarity: DCEN, DCEP); E7014: 1/16-inch, 3/32-inch, 1/8-inch (Polarity: DCEN, DCEP)
Maximum Steel Thickness
3/16-inch
Included Accessories
Shielding Gas Regulator; Shielding Gas Hose (4.6 ft); Ground Clamp with 10-ft Cable; MIG Torch (10-ft length); Electrode Holder with 12.5-ft Cable; TIG Torch with 10-ft Cable; Spare Contact Tips; Welding Rods; Wire Spool
Warranty
3-Year Warranty

Description

The Eastwood Elite MP140i Multi-Process Welder is an all-in-one welding solution that offers MIG, TIG, flux-core, and stick welding capabilities. With a maximum output of 140 amps, it can handle materials up to 3/16-inch thick, including steel, stainless steel, and aluminum (with an optional spool gun). Operating on standard 120V household power, this welder features IGBT inverter technology for a stable arc and reduced weight, making it portable at just 34 lbs. User-friendly features include a built-in spot-weld timer, infinitely adjustable control knobs, and a digital display for precise tuning. The package includes three professional-quality torches and common consumables, ensuring you're ready to weld right out of the box. Backed by Eastwood's 3-year warranty and lifetime tech support, the MP140i is a reliable choice for various welding applications.

Disclaimer

Specifications are approximate and subject to change. Always wear appropriate safety gear and follow the manufacturer's guidelines when operating welding equipment.
