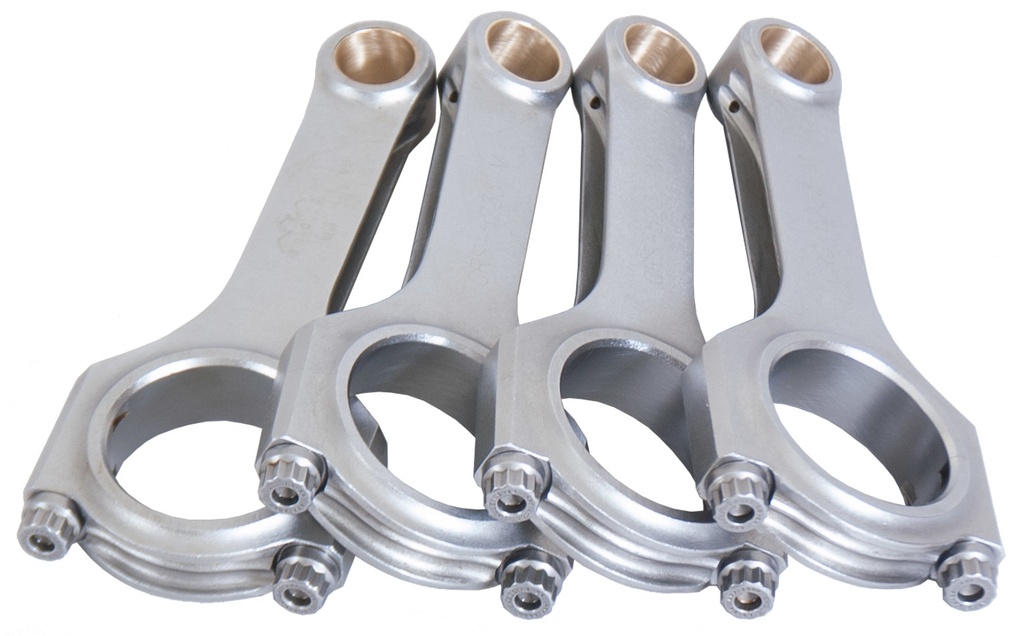

Eagle - Mazda 4340 Forged H-Beam Rods 5.233 BP/B6 Engines
High-performance 4340 forged steel H-beam connecting rods designed for Mazda 1.6L B6 and 1.8L BP engines, featuring ARP 2000 bolts and precision machining for enhanced strength and durability.
Specification
Brand
Eagle
Item Number
EAGCRS5233M3D
Material
Forged 4340 Steel
Rod Length
5.233 inches
Rod Style
H-Beam
Bolt Size
3/8 inch ARP 2000
Pin Size
0.787 inches
Pin End Width
0.858 inches
Rod Journal
1.77 inches
Housing Bore
1.89 inches
Big End Width
0.858 inches
Typical Weight
535 grams
Bushed for Full-Floating Piston Pin
Yes
Torque Specification
43 ft-lbs with ARP moly lube only
Application
Mazda 1.6L B6 and 1.8L BP Engines
Description
Enhance your Mazda 1.6L B6 or 1.8L BP engine's performance with Eagle's 4340 forged steel H-beam connecting rods. These rods are engineered for superior strength and durability, featuring a two-piece forging process, fully machined and shot-peened surfaces, and precise sizing held to exact tolerances. Equipped with 3/8-inch ARP 2000 bolts, they offer increased power-handling capability, making them ideal for competition use. Each set is weight-matched and includes silicon bronze bushings for full-floating piston pins, ensuring optimal performance and reliability.
