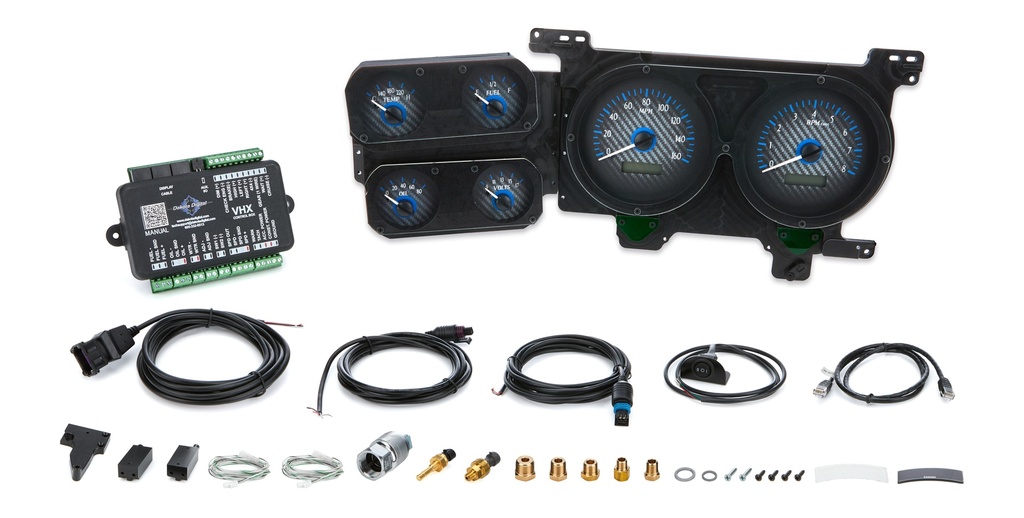

Dakota Digital - 1973-87 Chevy Pickup VHX Instrument System

Dakota Digital - 1973-87 Chevy Pickup VHX Instrument System

Upgrade your 1973-87 Chevy Pickup with the Dakota Digital VHX Instrument System, featuring fully lit needles, backlit faces, and two highly visible LCD message centers for unparalleled accuracy and user-customizable display feedback.
$ 945.25 $ 945.25

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specification

Brand
Dakota Digital
Item Number
VHX-73C-PU-C-B
Part Length
24.0 inches
Part Width
14.5 inches
Part Height
7.0 inches
Analog Gauges
Speedometer (0-160 MPH), Tachometer (0-8,000 RPM), Oil Pressure (0-80 psi), Water Temperature (100-260ºF), Fuel Level (E, 1/4, 1/2, 3/4, F), Voltmeter (9-17 VDC)
Lighting
Fully lit needles, backlit faces, and two highly visible LCD message centers
Built-in Indicators
Turn Signals (Left/Right), High Beam, Check Engine, Parking Brake, Cruise Control (On/On & Engaged when vehicle is equipped), Gear Position (Optional GSS-3000 sensor required), 4x4 (When vehicle is equipped), Wait to Start (When vehicle is equipped)
Included Sensors
Water Temperature (1/8" NPT, ground isolated sensor with a 10 ft harness), Oil Pressure (1/8" NPT solid state sensor with a 10 ft harness), Cable Driven Speed Sensor/Generator (Replaces GM style speedometer cables with a 10 ft harness)
Control Box Dimensions
5.5" x 3.5" x 1"
Calibration
Pushbutton operation for speedometer calibration, cylinder count, and fuel level gauge settings
Warranty
Limited lifetime warranty

Description

Enhance your 1973-87 Chevy Pickup with the Dakota Digital VHX Instrument System. This advanced gauge kit offers fully lit needles, backlit faces, and two highly visible LCD message centers, providing precise information with a modern touch. Engineered with micro-controlled precision stepper motors and solid-state sensors, it ensures unparalleled accuracy. The system includes analog gauges for speedometer (0-160 MPH), tachometer (0-8,000 RPM), oil pressure (0-80 psi), water temperature (100-260ºF), fuel level (E, 1/4, 1/2, 3/4, F), and voltmeter (9-17 VDC). Additional features include user-customizable display feedback, built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, gear position (with optional sensor), 4x4, and wait to start. Designed to fit into the OEM or reproduction style bezel (not included), this system is a perfect blend of classic aesthetics and modern technology.

Disclaimer

Bezel not included; system uses OEM or reproduction style bezel. Optional sensors for gear position and other features sold separately.
