Specification
Brand
Carrillo Rods
Item Number
CRLCR4233
Rod Length
5.850 inches
Rod Journal
2.000 inches
Rod Bolt Diameter
3/8 inch
Rod Bolt Material
CARR
Pin Width
1.060 inches
Big End Width
0.940 inches
Big End Bore
2.1250 inches
Wrist Pin Size
0.927 inches
Wrist Pin Style
Bushed Full Floating
Advertised Weight
622 grams
Rod Series
Pro-H
Rod Style
H Beam
Sold As
Individual
Material
Steel
Cap Retention Style
Cap Screw
Weight Matched Set
No
Magnafluxed
Yes
Connecting Rod Color
Shot-Peened
Description

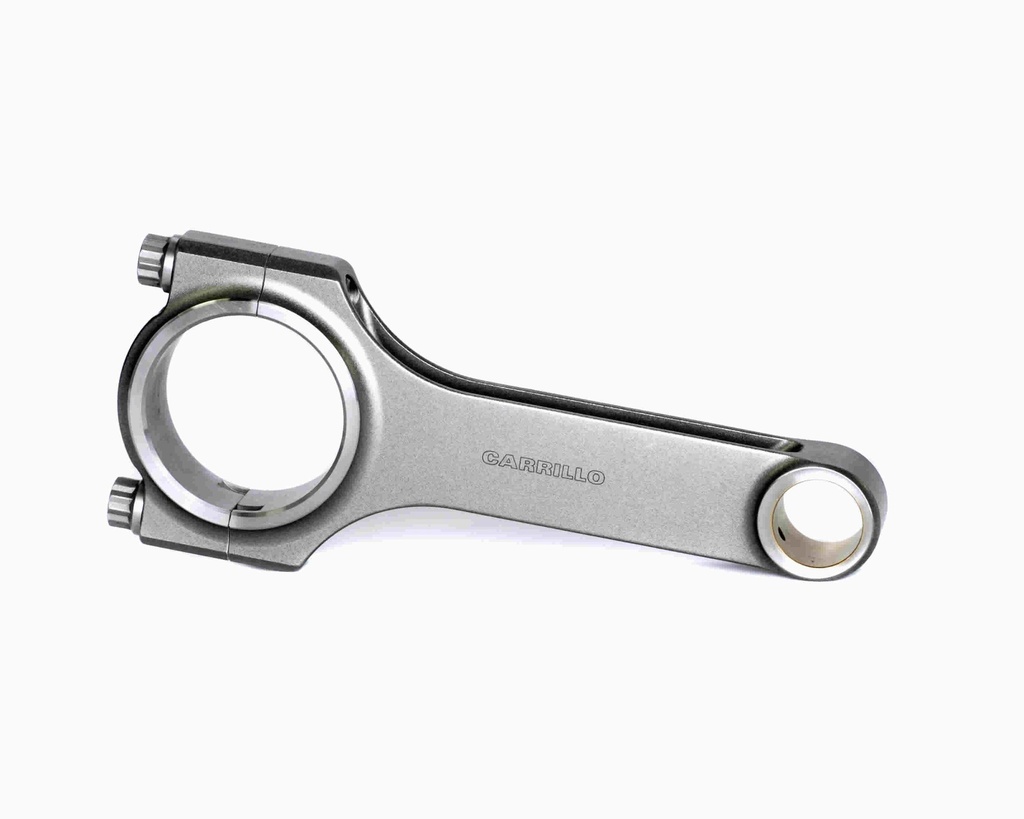

The Carrillo Pro-H Beam Connecting Rods are engineered for maximum power and reliability in high-performance Small Block Chevy engines. This 5.850-inch rod features a 2.000-inch rod journal and is equipped with 3/8-inch CARR bolts, ensuring superior strength and durability. Designed with a 1.060-inch pin width and a 0.940-inch big end width, it accommodates a 0.927-inch wrist pin in a bushed full-floating configuration. With an advertised weight of 622 grams, this rod is ideal for demanding racing applications. Please note that this product is sold individually.
