Specification
Brand
COMP Cams
Item Number
COM12-250-3
Part Length
25.0
Part Width
3.0
Part Height
2.75
Lift Intake
0.507 in
Lift Exhaust
0.510 in
Duration Intake
284 degrees
Duration Exhaust
296 degrees
Lobe Separation Angle
110 degrees
RPM Range
2300-6500
Application
Small Block Chevy
Description

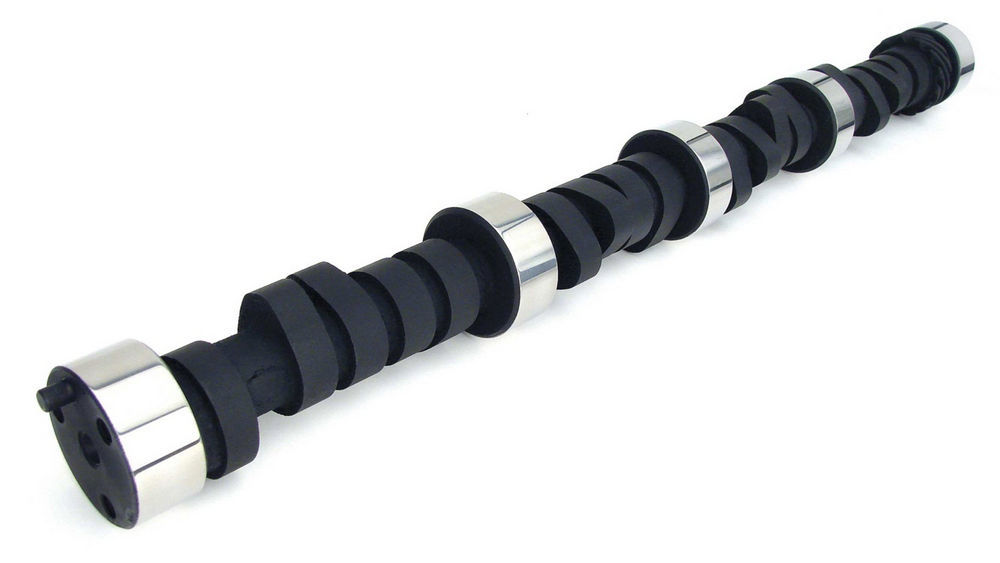

The COMP Cams SBC Extreme Energy Cam XE284H-10 is engineered to push the limits of your Small Block Chevy. With a hydraulic flat tappet design, this camshaft offers valve lifts of 0.507 and 0.510 inches, with durations of 284 and 296 degrees. Its 110 Lobe Separation Angle ensures a perfect balance of power and precision, making it ideal for an operating range of 2300 to 6500 RPM. Experience enhanced horsepower and torque, delivering a high performance that’s both aggressive and reliable.
Disclaimer
Specifications and performance results are standard approximations and can vary depending on the application and setup. Ensure compatibility with your vehicle before purchase.
