Specification
Brand
Borgeson
Item Number
800130
Part Length
14.3 inches
Part Width
12.4 inches
Part Height
6.9 inches
Input Shaft
3/4 in-30 Spline
Pitman Shaft
GM 1-1/4 in with 32 splines
Maximum Pressure
1450 PSI
Optimal Pressure
1100-1250 PSI
Flow Rate
2.5-3.0 GPM
Pressure Port
M18 X 1.5 O-Ring or 11/16 in-18 Flare
Return Port
M16 X 1.5 O-Ring or 5/8 in-18 Flare
Applications
1967-1992 Camaro & Firebird, 1968-1974 Nova, 1964-1977 GM A-Body, 1965-1970 Impala & Caprice, 1978-1988 GM G-Body, 1982-2002 Chevy S-10 & GMC S-15
Description

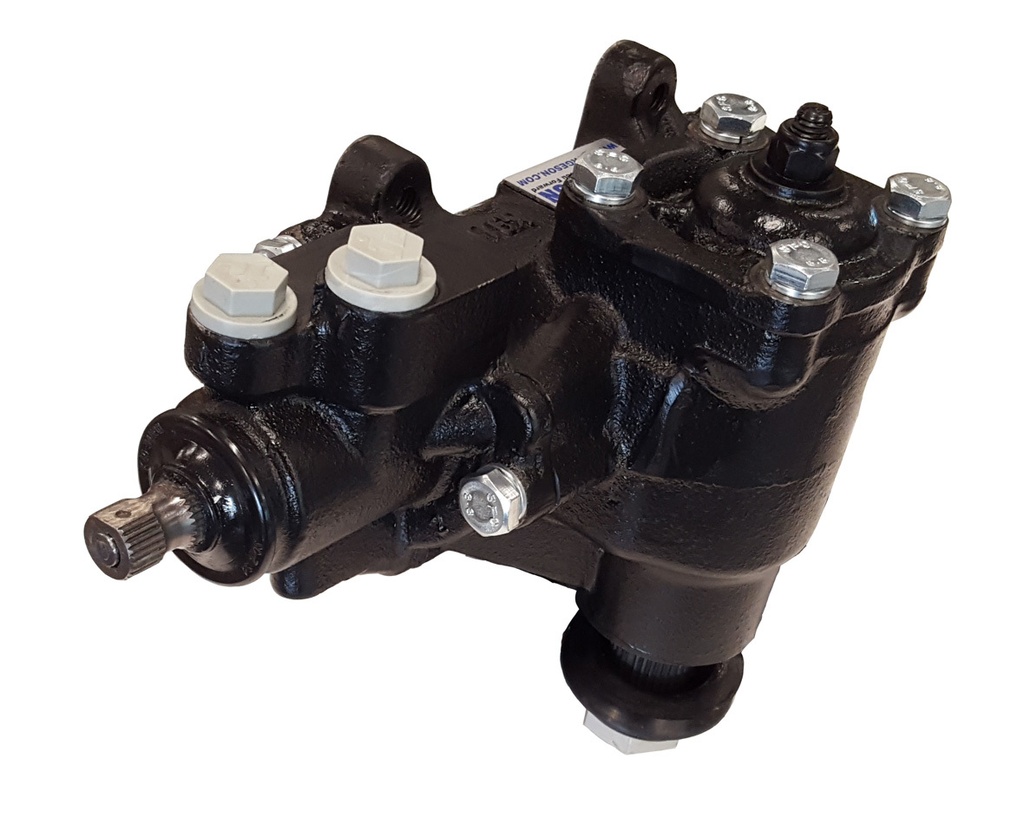

The Borgeson Power Steering Box Saginaw 700 with a 12.7:1 ratio offers a modern steering feel for GM muscle cars. Engineered for the GM A-Body, F-Body, G-Body, and X-Body (1964-1992), this cast iron steering box is finished with black paint and designed for street and performance series applications. It features a 3/4 in-30 spline input shaft and is compatible with both O-ring and flare style hose connections. Enhance your vehicle's handling with a direct bolt-in replacement that integrates seamlessly with stock components, promising a firm and responsive steering experience.
