Aurora - Rod End Male LH 7/16-20 High Mis PTFE

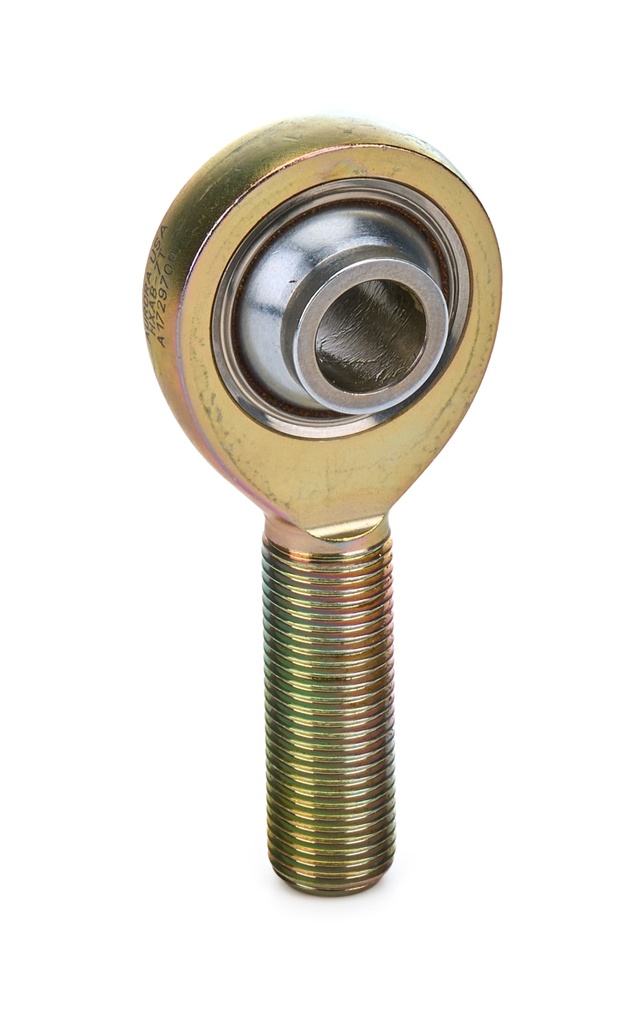

Aurora HXAB-7T High Misalignment Series Male Rod End featuring a 7/16-inch bore, 1/2-20 left-hand male thread, PTFE liner, and cadmium-plated steel construction.
Specification
Brand
Aurora
Item Number
HXAB-7T
Bore Size
0.4375 in (7/16 in)
Thread Size
1/2-20 UNJF-3A-LH
Thread Direction
Left Hand
Body Material
Heat-treated 4340 alloy steel
Ball Material
Heat-treated 52100 steel
Liner Material
PTFE
Finish
Cadmium-plated
Static Load Capacity
17,105 lbs
Misalignment Angle
21 degrees
Centerline Length
2.438 in
Total Height
3.1065 in
Head Diameter
1.337 in
Ball Diameter
7/8 in
Weight
0.16 lbs
Description
The Aurora HXAB-7T is a high-strength, precision-engineered male rod end designed for applications requiring high misalignment capabilities. It features a 7/16-inch bore and a 1/2-20 left-hand male thread. Constructed with a heat-treated 4340 alloy steel body and a heat-treated 52100 steel ball, both components are coated for corrosion resistance. The PTFE liner ensures smooth operation and maintenance-free performance. This rod end is ideal for demanding applications where durability and reliability are paramount.
