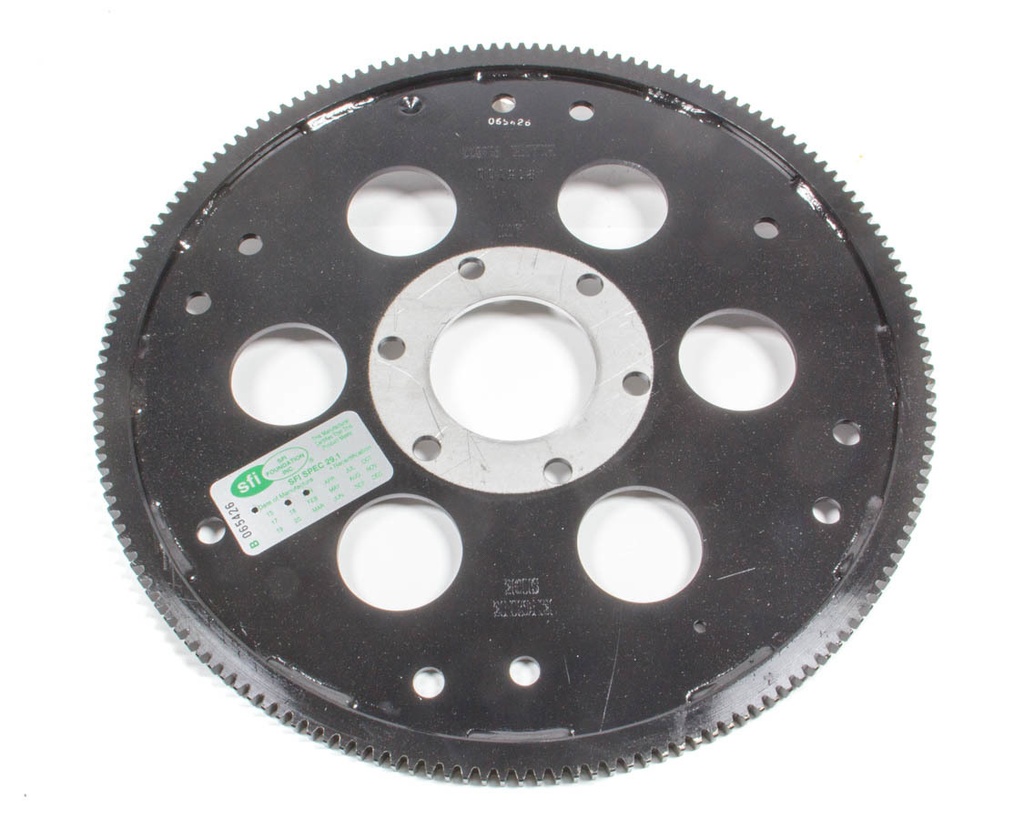

ATI Performance - 164 Tooth Flexplate Sfi Bbf 429/460 Int Balance
ATI Performance's 164 Tooth Flexplate is SFI 29.1 certified, designed for Big Block Ford 429/460 engines with internal balance and a 1-piece rear main seal.
Specification
Brand
ATI Performance
Item Number
ATI915700
Ring Gear Tooth Quantity
164-tooth
Flexplate Diameter
14.24 inches
Engine Balance
Internal
Flexplate Material
Steel
SFI Rating
SFI 29.1
Rear Main Seal Style
1-piece
Converter Bolt Pattern
10.750 in., 11.438 in., 11.500 in.
Crankshaft to Flywheel Attachment
6-bolt
Weight
7.65 lbs
Description
The ATI Performance 164 Tooth Flexplate is engineered for Big Block Ford 429/460 engines featuring an internal balance and a 1-piece rear main seal. Manufactured from high-quality steel, this flexplate meets SFI 29.1 safety standards, ensuring durability and performance under high RPM conditions. It is designed to accommodate aftermarket converters where the drive pad is above the converter body. Please note that a special spacer and bolt kit is required for installation.
Disclaimer
Special spacer and bolt kit must be used with this flexplate. These flexplates are flat and will only accommodate aftermarket converters where the drive pad is above the converter body.
