Specification
Brand
Air Flow Research
Item Number
AFR0914W/6400
Material
A356 Aluminum
Intake Port Volume
190 cc
Valve Angle
23°
Valve Spring Pocket Diameter
1.460” O.D
Max Valve Spring Pocket Machining
1.750” O.D
Deck Thickness
.750”
Minimum Bore Diameter
4.00”
Spark Plug Dimensions
14mm x .750” w/ Gasket Seat
Description

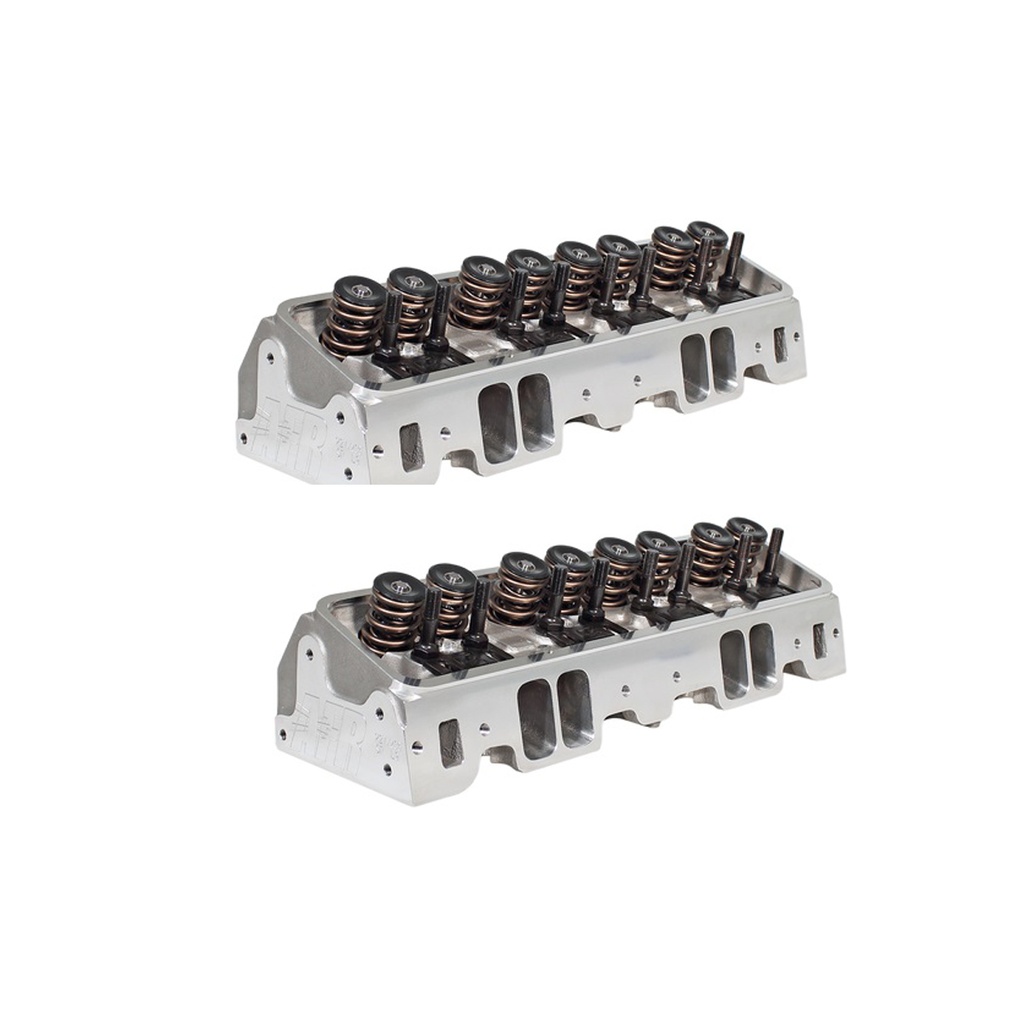

The Air Flow Research SBC 190 Vortec Corona Series Cylinder Heads are the ultimate upgrade for your small block Chevy. Featuring a 190 cc intake and 7/16-inch rocker arm studs, these straight plug heads provide optimal performance for street, towing, and street/strip engines. Crafted from high-quality A356 aluminum, they ensure durability and exceptional heat dissipation. The heads come fully CNC ported in intake, exhaust, and chambers, making them a superior choice over re-worked factory heads. Notably, they are machined for both center and perimeter bolt valve covers, offering flexibility in application.
