Wiseco - GM LS Series Piston Set 3.800 Bore -2.2cc

https://racingwarehouse.com/web/image/product.template/11942/image_1920?unique=31958fe

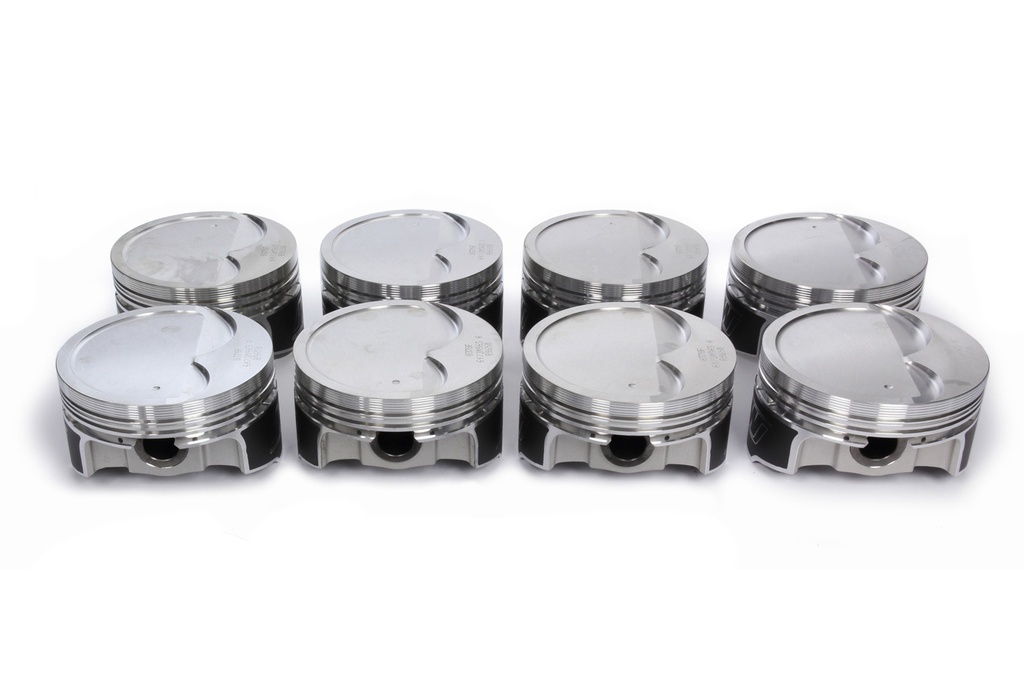

High-performance forged piston set designed for GM LS-Series engines, featuring a 3.800-inch bore and -2.2cc flat top design for optimal engine performance.

833.99 833.99 USD 833.99

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specification

Brand
Wiseco
Item Number
WISK474M965
Bore Diameter
3.800 inches
Stroke
3.622 inches
Rod Length
6.125 inches
Compression Height
1.300 inches
Piston Volume
-2.20 cc
Piston Material
2618 Aluminum Alloy
Skirt Coating
ArmorGlide
Piston Quantity
8
Ring Set Included
No
Top Compression Ring Thickness
1/16 inch
Second Compression Ring Thickness
1/16 inch
Oil Ring Thickness
3.0 mm
Wrist Pin Included
Yes
Wrist Pin Material
5115 Steel
Wrist Pin Style
Floating
Wrist Pin Outer Diameter
0.927 inches
Engine Compatibility
LS1, LS2, LS6
Recommended Ring Set
3805HF

Description


Enhance your GM LS-Series engine with the Wiseco GM LS Series Piston Set. Engineered with a 3.800-inch bore and a -2.2cc flat top design, these forged pistons are crafted from high-strength 2618 aluminum alloy, ensuring durability and superior performance. The set includes eight pistons, each featuring 1/16 x 1/16 x 3.0 mm ring grooves and a compression height of 1.300 inches. Designed to accommodate 3.622-inch stroke and 6.125-inch rod length configurations, these pistons are ideal for high-performance applications. The ArmorGlide skirt coating reduces friction and noise, while the anti-detonation grooves and pressure seal grooves enhance ring seal and engine efficiency. Wrist pins are included, and the set is compatible with LS1, LS2, and LS6 engines. Please note that the recommended ring set (3805HF) is sold separately.

Disclaimer


Product images may differ from the actual product. Image may be a representation of this item. Please verify compatibility with your specific engine configuration before purchase.
