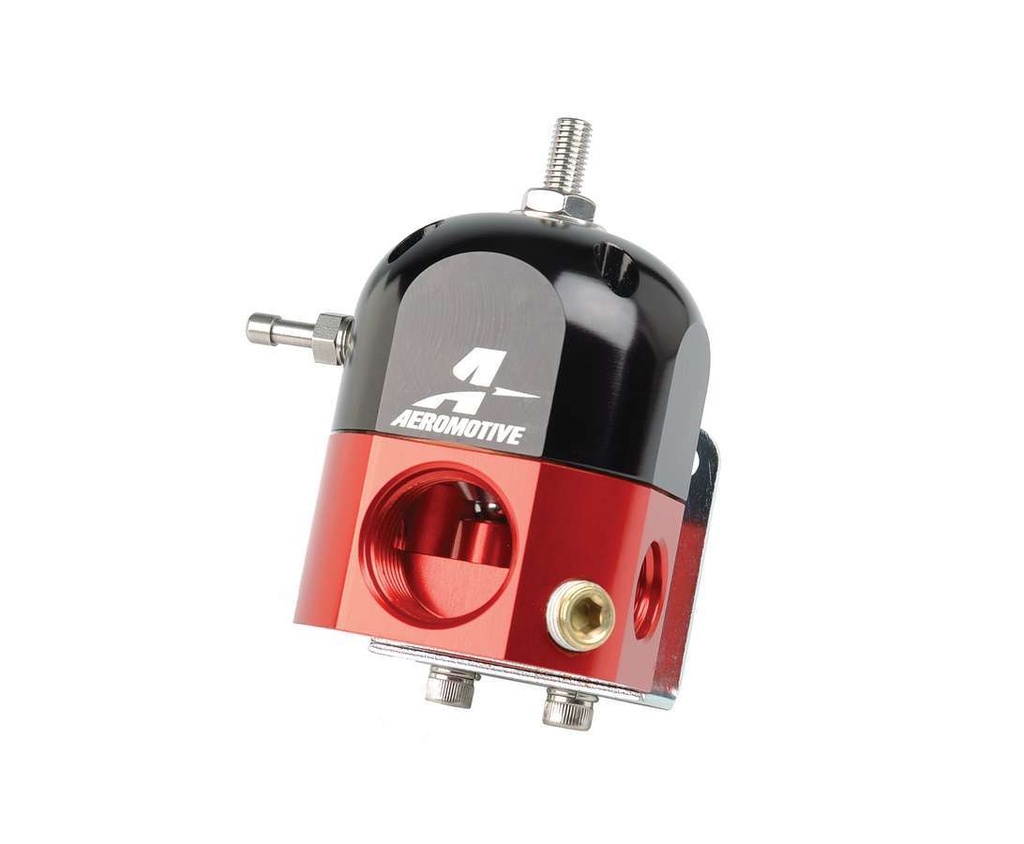

Aeromotive A1000 Carbureted Bypass Regulator
High-performance fuel pressure regulator by Aeromotive, designed for carbureted applications.
Specification
Brand
Aeromotive
Item Number
AFS13204
Base Pressure
3-15 PSI
Inlet Port
10 AN Female O-Ring
Outlet Ports
Dual 6 AN Female O-Ring
Return Port
8 AN O-Ring
Gauge Port
1/8 in NPT
Compatible Fuels
E85, Gasoline, Diesel
Finish
Black/Red Anodized
Dimensions
6.6 x 5.0 x 3.0 inches
Description
The Aeromotive A1000 Carbureted Bypass Regulator is engineered for superior fuel pressure control in high-performance vehicles. Adjustable from 3 to 15 psi, it features an in-line design with a 10 AN female O-ring inlet and dual 6 AN female O-ring outlets, making it suitable for E85, gasoline, and diesel. With a striking black and red anodized finish, this regulator offers rock-steady fuel pressure ideal for naturally aspirated or turbocharged engines.
Disclaimer
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
