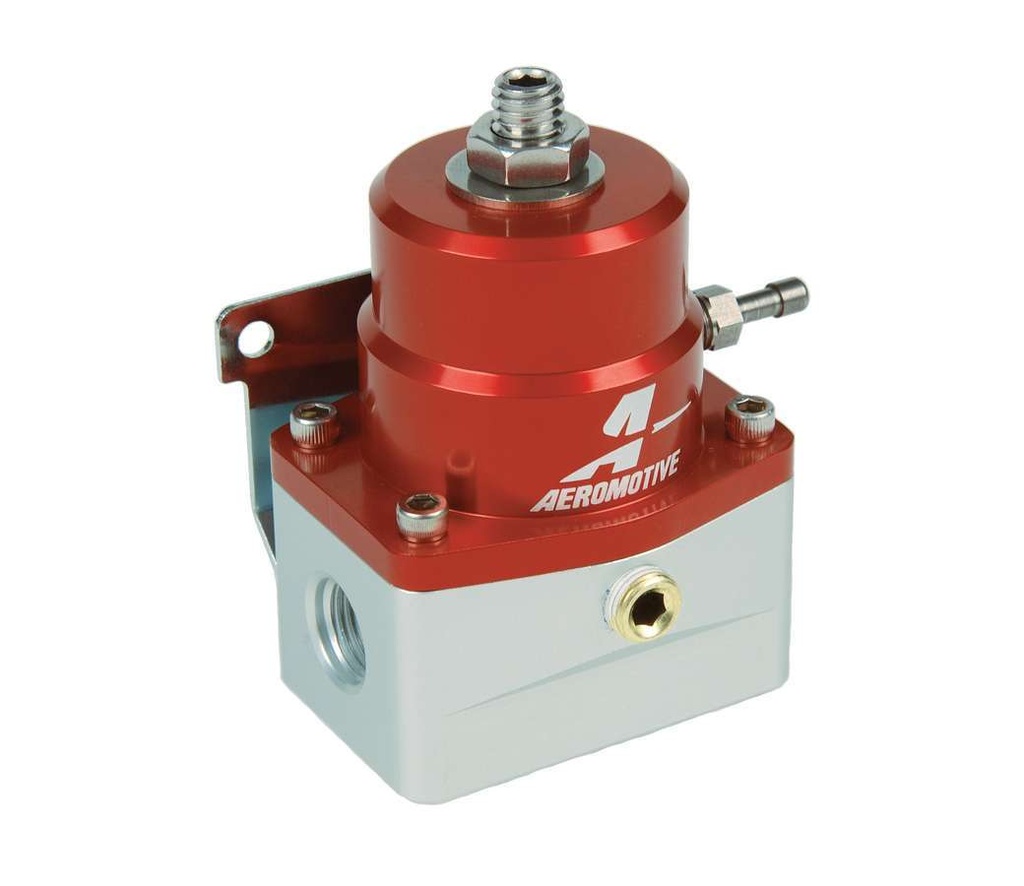

A1000-6 Injected Bypass Regulator
Precision Fuel Pressure Regulator for High Performance Engines.
Specification
Brand
Aeromotive
Item Number
AFS13109
Fuel Pressure Range
40-75 PSI
Material
Red/ Clear Anodized Aluminum
Port Size
ORB-06
Compatible Fuels
Gasoline, Ethanol, Methanol
Mounting
In-Line
Description
The Aeromotive A1000-6 Injected Bypass Regulator is your solution for optimal fuel pressure management in high-performance vehicles. Designed for use with A1000 and similar fuel pumps, it adjusts base pressure from 40 to 75 PSI, with capabilities to handle gasoline, ethanol, and methanol. Featuring ORB-06 inlet/outlet and return ports, this regulator supports a 1:1 vacuum/boost reference and offers a dedicated 1/8” NPT gauge port. Ideal for forced induction and high flow EFI applications.
Disclaimer
Ensure compatibility with your vehicle's make and model before purchase. Professional installation recommended.
