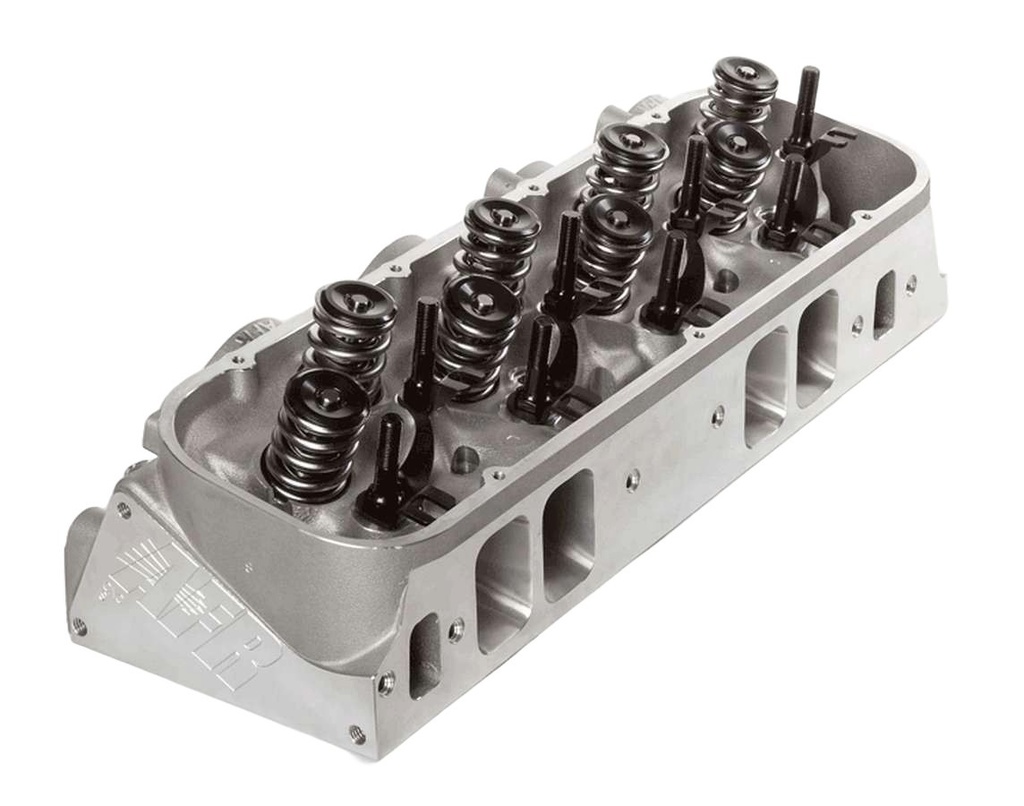

Air Flow Research - BBC 345cc Alum Heads Magnum 117cc Assembled
High-performance aluminum cylinder heads for Big Block Chevy engines, designed for optimal airflow and efficiency.
Specification
Brand
Air Flow Research
Item Number
AFR2110
Material
A356 Aluminum
Intake Port Volume
345cc
Combustion Chamber Size
117cc
Valve Angle
24°/4° Intake, 15°/4° Exhaust
Valve Springs
1.625 inch OD Solid Roller Dual Valve
Max RPM
7400-7600
Deck Thickness
.750 inch
Minimum Bore Diameter
4.250 inch
Dimensions
23.5 x 19.5 x 8.25 inches
Description
Enhance your engine's performance with the Air Flow Research BBC 345cc Alum Heads Magnum 117cc Assembled cylinder heads. These heads come with 2.300/1.880 inch valves, 345cc intake, and 117cc chamber, equipped with 1.625 inch springs and angle plug configuration. Constructed from durable aluminum, they are specifically designed for Big Block Chevy engines, ensuring high flow rates and improved engine efficiency.
Disclaimer
Ensure compatibility with your vehicle before purchase. Installation should be performed by qualified personnel. Refer to manufacturer guidelines for specific applications.
