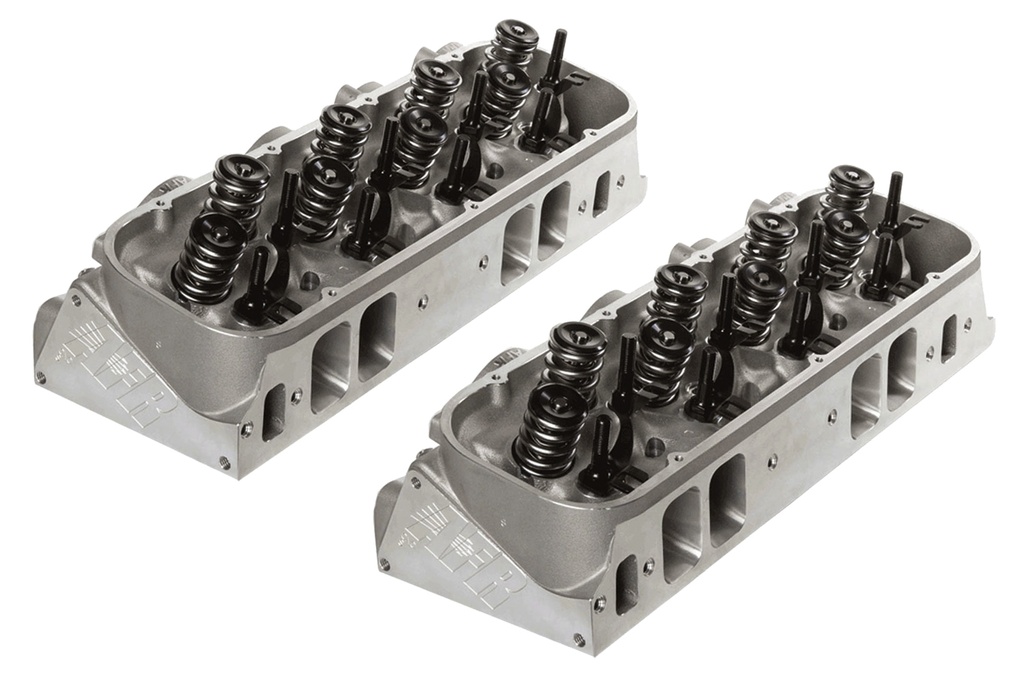

Air Flow Research - BBC 325cc Alum Heads Magnum 117cc Assembled
Enhance your engine's performance with Air Flow Research’s BBC 325cc Aluminum Heads. Designed for Big Block Chevy engines, these heads feature a 325cc intake and 117cc chamber, delivering optimal airflow and power.
Specification
Brand
Air Flow Research
Item Number
AFR2101
Material
A356 Aluminum
Intake Port Volume
325cc
Combustion Chamber Size
117cc
Intake Valve Diameter
2.300 inches
Exhaust Valve Diameter
1.880 inches
Valve Spring Diameter
1.625 inches
Max Lift
0.850 inches
Deck Thickness
0.750 inches
Valve Angle
24°/4° Intake, 15°/4° Exhaust
Part Length
23.25 inches
Part Width
19.5 inches
Part Height
8.5 inches
Description
The Air Flow Research BBC 325cc Alum Heads Magnum 117cc Assembled features precision-engineered aluminum construction with a 325cc intake volume and 117cc chamber size. Perfectly suited for high-performance Big Block Chevy applications, these heads are assembled with 2.300/1.880 inch valves and 1.625 inch springs. The angle plug design ensures compatibility with your setup, making it an ideal choice for racing enthusiasts looking to maximize their engine's potential.
