Air Flow Research - BBC 325cc Alum Heads Magnum 121cc Assembled

https://racingwarehouse.com/web/image/product.template/15904/image_1920?unique=6ed31db
Experience enhanced performance with AFR's BBC 325cc Alum Heads. Ideal for Big Block Chevy setups, featuring 325cc intake and 121cc chamber for optimal flow and combustion.

4,051.00 4051.0 USD 4,051.00

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specification

Brand
Air Flow Research
Item Number
AFR2101-1
Material
A356 Aluminum
Intake Port Volume
325cc
Combustion Chamber Size
121cc
Valve Angle
24°/4° Int, 15°/4° Exh
Valve Springs
PAC Racing #1224, 1.625” OD, 275 lbs. on seat, .850” max lift
Max RPM
7400-7600
Valve Cover Bolt Pattern
Perimeter
Deck Thickness
.750”
Min Bore Diameter
4.250”
Spark Plug Dimensions
14mm x .750” w/ Gasket Seat
Rocker Studs
ARP 7/16”
Valve Retainers
Manley Steel, 10º

Description

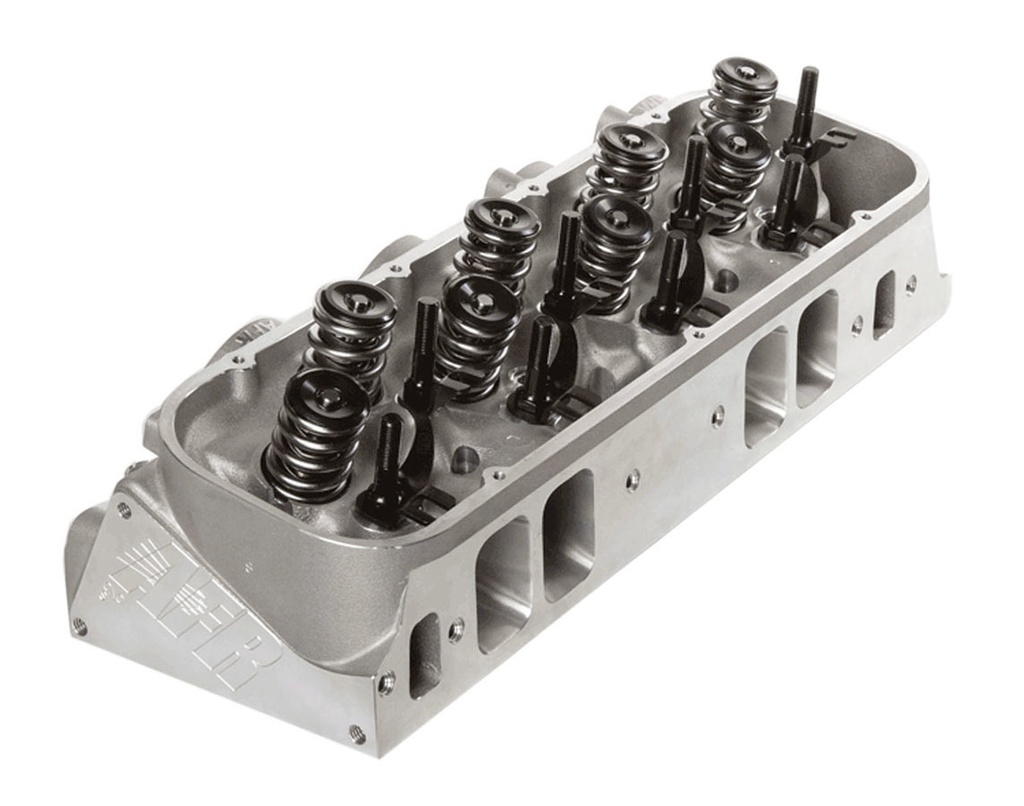

The Air Flow Research BBC 325cc Alum Heads Magnum offers superior performance enhancements for your Big Block Chevy. This pair of cylinder heads features fully CNC ported combustion chambers, intake, and exhaust, maximizing airflow and efficiency. With 2.300” intake and 1.880” exhaust valves, and a 325cc intake port volume, these aluminum heads are perfect for both street and strip applications. The angle plug design, combined with 121cc combustion chamber volume, ensures optimum spark plug positioning for improved ignition. Ideal for engine displacements of up to 572 cubic inches, the BBC 325cc Alum Heads support a maximum RPM range of 7400-7600. With top-notch components like PAC Racing Valve Springs, Manley Steel Retainers, and ARP Rocker Studs, this product guarantees durability and peak performance for high-output builds.
