Air Flow Research - GM LS 15deg Cyl. Heads 230cc Cathedral Port
High-performance cylinder heads with enhanced airflow and combustion efficiency.
Specification
Brand
Air Flow Research
Item Number
AFR1610
Material
A356 Aluminum
Intake Port Volume
230cc
Combustion Chamber Size
62cc
Valve Configuration
2.080 / 1.600 in Valves
Deck Thickness
.750”
Valve Spring Diameter
1.270 in
Spark Plug Dimensions
14mm x .750” w/ Tapered Seat
Recommended Max RPM
7000-7200
Part Length
24.0 inches
Part Width
12.0 inches
Part Height
9.0 inches
Description

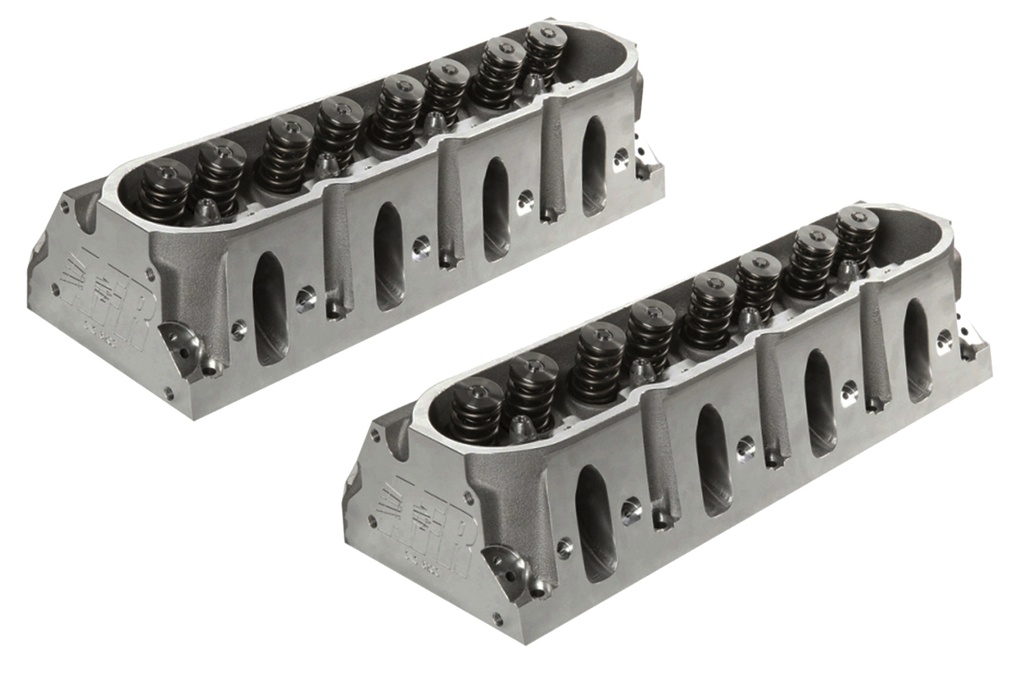

The GM LS 15deg Cylinder Heads 230cc Cathedral Port by Air Flow Research are crafted from A356 aluminum for superior strength and heat dissipation. Perfect for LS-Series engines, these heads are fully assembled and feature a 230cc intake, 62cc chamber, and premium components such as titanium retainers and ductile iron valve seats. Ideal for aggressive street and strip applications, they ensure maximum airflow with CNC ported chambers and ports, offering a significant performance upgrade for your engine.
Disclaimer
Please ensure compatibility with your vehicle's engine before purchase. Installation should be performed by a qualified professional. WARNING: Cancer and Reproductive Harm - www.P65Warning.ca.gov
