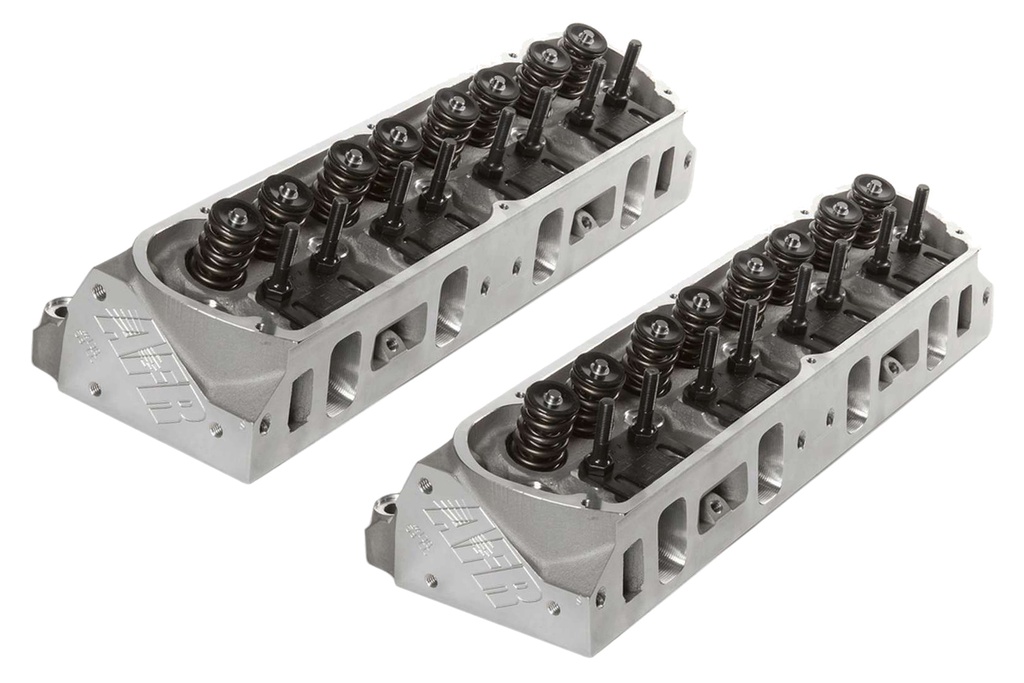

Air Flow Research - SBF 220cc Alum Heads 72cc

Air Flow Research - SBF 220cc Alum Heads 72cc

https://racingwarehouse.com/web/image/product.template/15887/image_1920?unique=6ed31db
High-performance cylinder heads designed for race applications, offering superior airflow capabilities with 220cc intake ports and 72cc combustion chambers.

$ 3,144.00 3144.0 USD $ 3,144.00

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Specification

Brand
Air Flow Research
Item Number
AFR1456
Material
A356 Aluminum
Intake Port Volume
220cc
Combustion Chamber Size
72cc
Valve Angle
20°
Valve Size
2.100" Intake / 1.570" Exhaust
Spring Diameter
1.550"
Max Lift Capability
.710"
Deck Thickness
.750"
Minimum Bore Diameter
4.00"

Description

The Air Flow Research SBF 220cc Aluminum Heads are the epitome of race-ready performance enhancements for your small block Ford. These cylinder heads are meticulously CNC ported to ensure maximum airflow, making them ideal for race or Pro Street applications. With 220cc intake ports and 72cc combustion chambers, they've been crafted for power and efficiency. The heads come assembled with high-quality components such as 2.100-inch intake and 1.570-inch exhaust valves, along with 1.550-inch dual valve springs capable of handling up to .710" lift. Constructed from premium A356 aluminum, these heads guarantee durability and exceptional thermal conductivity. Upgrade your engine's capabilities and experience an unprecedented boost in horsepower.
