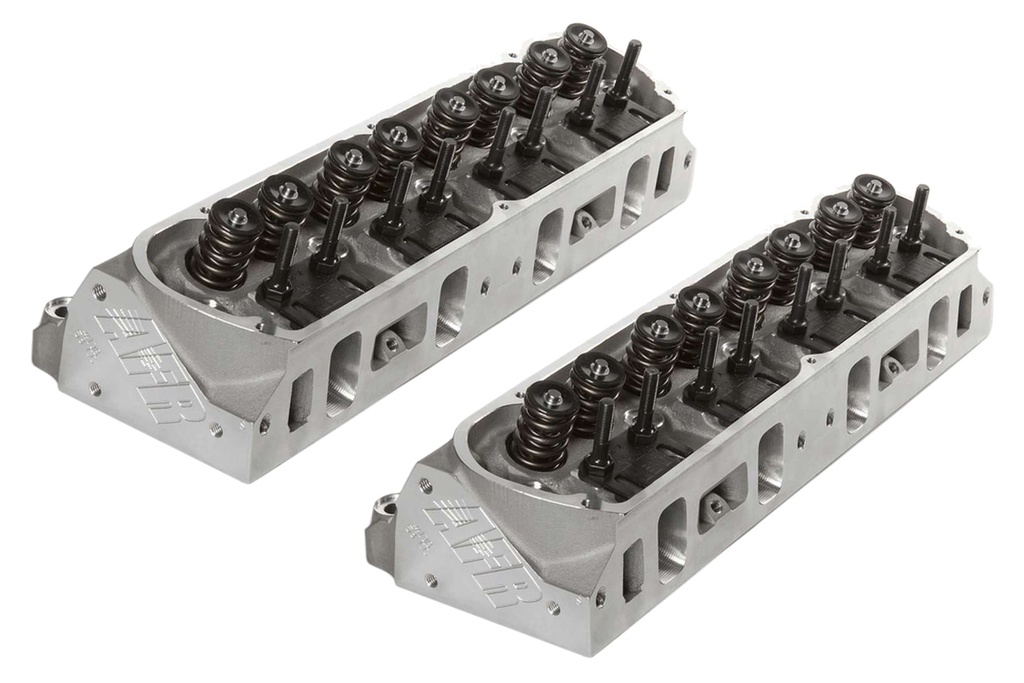

Air Flow Research - Sbf 205Cc Alum Heads Renegade 58Cc

Air Flow Research - Sbf 205Cc Alum Heads Renegade 58Cc

https://racingwarehouse.com/web/image/product.template/15885/image_1920?unique=6ed31db
Air Flow Research's Sbf 205Cc Alum Heads Renegade 58Cc offers exceptional performance with its aluminum construction and 205cc intake.

$ 3,015.00 3015.0 USD $ 3,015.00

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Specification

Brand
Air Flow Research
Item Number
AFR1450
Material
A356 Aluminum
Intake Port Volume
205cc
Intake Port Dimension
2.115” H x 1.300” W x 3/8° Radius
Exhaust Port Volume
70cc
Exhaust Port Dimension
1.400” H x 1.400” W
Combustion Chamber Size
58cc
Valve Angle
20°
Min Bore Diameter
4.000”
Deck Thickness
.750”
Valve Spring Pocket Diameter
1.580” O.D
Flat Mill Max
54cc from 58cc
Angle Mill Max
48cc from 58cc
Head Bolt Diameter
1/2 inch
Spark Plug Dimensions
14mm x .750” w/Gasket Seat

Description

The Air Flow Research Sbf 205Cc Alum Heads Renegade 58Cc is a top-tier cylinder head designed for serious racing enthusiasts. Featuring 2.080/1.600 inch valves, a 205 cc intake, and a 58 cc chamber, this head delivers optimal airflow for enhanced engine performance. Crafted from high-quality aluminum, it includes a 1.550 inch spring angle plug for robust durability. Ideal for Small Block Ford engines, this pair of heads provides premium competition-ready performance, ideal for those looking to upgrade their street or strip vehicle's capability.
