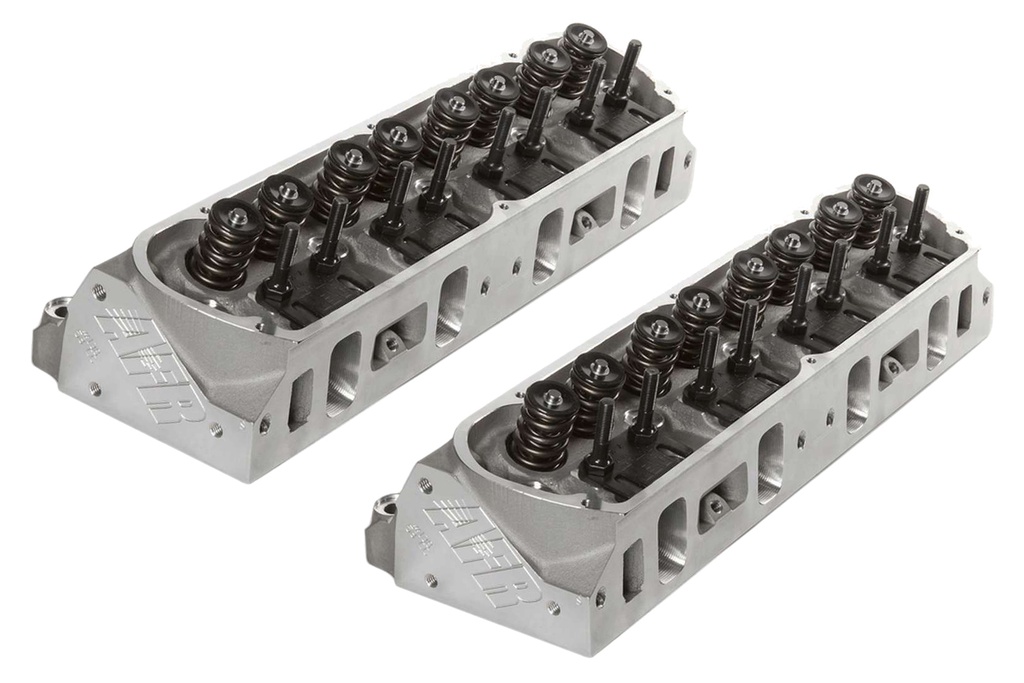

Air Flow Research - SBF 185cc Alum Heads Renegade Street/Strip

https://racingwarehouse.com/web/image/product.template/15880/image_1920?unique=6ed31db
SBF 185cc aluminum cylinder heads for street/strip performance.

2,329.00 2329.0 USD 2,329.00

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specification

Brand
Air Flow Research
Item Number
AFR1387
Material
A356 Aluminum
Intake Port Volume
185cc
Intake Port Dimension
2.045” H x 1.205” W x 3/8° Radius
Exhaust Port Volume
70cc
Exhaust Port Dimension
1.355” H x 1.360” W
Combustion Chamber Size
72cc
Valve Angle
20°
Maximum RPM
6300-6500
Recommended Bore Diameter
4.000”
Deck Thickness
.750”
Spark Plug Dimensions
14mm x .750” w/ Gasket Seat

Description


The Air Flow Research SBF 185cc Renegade Street/Strip cylinder heads are engineered for high performance on Small Block Ford engines. Featuring fully CNC ported intake, exhaust, and combustion chambers, these heads deliver exceptional airflow and power. Designed with 2.020/1.600 inch valves and a 72cc combustion chamber, they fit perfectly on street and strip engines with displacements from 302 to 393 cubic inches, operating up to 6,500 RPM. Made from durable A356 aluminum, these heads provide unmatched quality and reliability. Pair includes specific components like dual valve springs, high-performance retainers, and Viton valve seals for optimal performance right out of the box.
