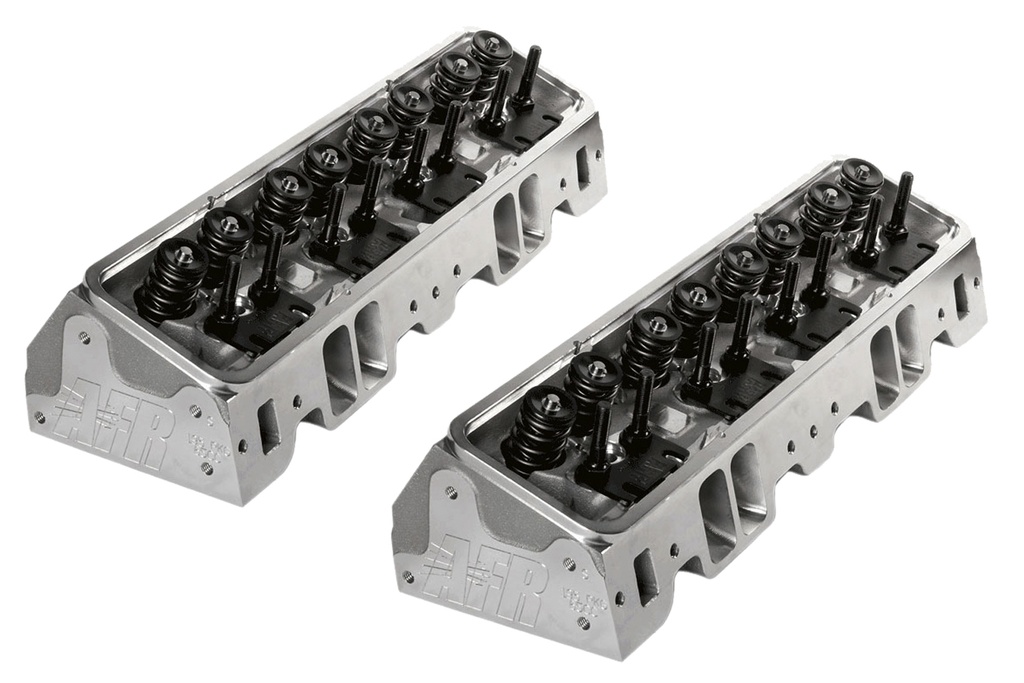

Air Flow Research - SBC 210cc Alum Heads Eliminator Race 75cc A/P
High-performance aluminum cylinder heads for Small Block Chevy with CNC porting and optimized airflow for racing applications.
Specification
Brand
Air Flow Research
Item Number
AFR1050
Material
A356 Aluminum
Intake Port Volume
210cc
Combustion Chamber Size
75cc
Valve Size
2.080" Intake / 1.600" Exhaust
Valve Spring Pocket Diameter
1.580" O.D
Deck Thickness
0.750 inches
Spark Plug Dimensions
14mm x 0.750" with Gasket Seat
Minimum Bore Diameter
4.00 inches
Description
The Air Flow Research SBC 210cc Alum Heads Eliminator Race 75cc A/P is engineered for high-performance racing applications. Designed for Small Block Chevy engines, these assembled cylinder heads feature 210cc intake ports and 75cc combustion chambers. The heads are made from high-grade A356 aluminum and include CNC ported intake and exhaust chambers, ensuring optimal airflow and maximum horsepower. Equipped with 2.080 in intake and 1.600 in exhaust valves, and dual valve springs designed for aggressive cam profiles, these heads are ideal for engines operating in competitive environments. The angle plug design enhances efficiency further.
