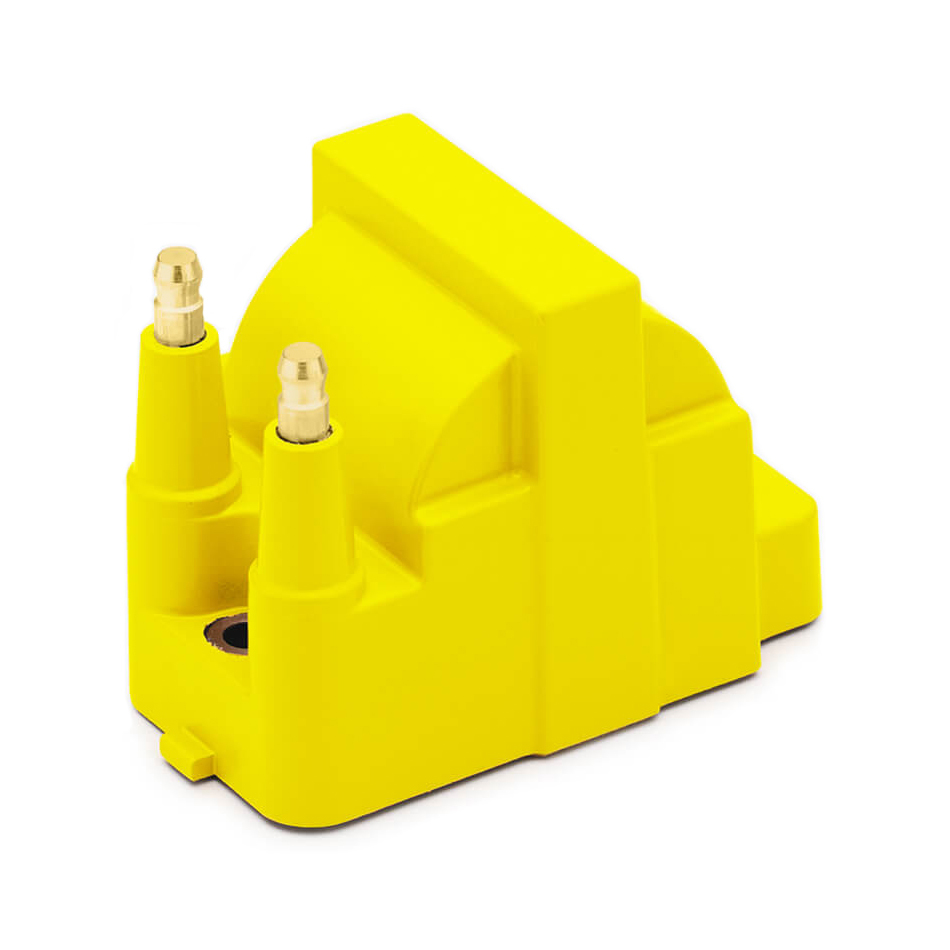

Accel - GM Ac/Delco Style Super Dis Coil 86+

https://racingwarehouse.com/web/image/product.template/9312/image_1920?unique=ee4db25
High-performance ACCEL ignition coil designed for GM AC/Delco systems, delivering 45,000 volts of maximum energy for enhanced ignition.

79.09 79.09 USD 79.09

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specification

Brand
ACCEL
Item Number
ACL140017
Primary Resistance
0.5 Ohms
Secondary Resistance
8.0 k Ohms
Turns Ratio
75:1
Maximum Voltage
45,000 volts
Peak Increase in Voltage
10%
Peak Increase in Dwell
21%
Peak Increase in Current
12%
Dimensions
4.8 x 3.65 x 3.6 inches

Description


The ACCEL GM AC/Delco Style Super DIS Coil for 1986-2003 vehicles is engineered for superior performance. Featuring an innovative 'Raised Dome' construction and advanced bobbin technology, this coil provides higher energy and voltage outputs, ensuring better ignition with its specialized silicone magnetic steel core and optimized windings. Its high dielectric 'ACCEL Yellow' housing and brass contacts enhance energy transfer while resisting corrosion. Suitable for OE computer controlled systems as well as aftermarket DIS ignition systems from Crane or MSD, this high voltage coil delivers a peak voltage of 45,000 volts and is packaged as a single unit. Ideal for GM vehicles, 4 cylinders require 2 coils, 6 cylinders need 3, and 8 cylinders 4 coils. Upgrade your ignition system with ACCEL's premium quality coil designed for higher efficiency and durability.

Disclaimer


Please ensure compatibility with your vehicle's ignition system before purchase. Professional installation recommended. Specifications may vary slightly due to manufacturer updates.
