Accel - Super Coil
High-performance Super Coil designed for enhanced ignition output and reliability. Ideal for racing and street performance applications, providing improved throttle response and power.
Specification
Brand
ACCEL
Item Number
ACL140001
Primary Resistance
0.7 Ohms
Secondary Resistance
11.8 k Ohms
Turns Ratio
70:1
Maximum Voltage
45,000 volts
Description

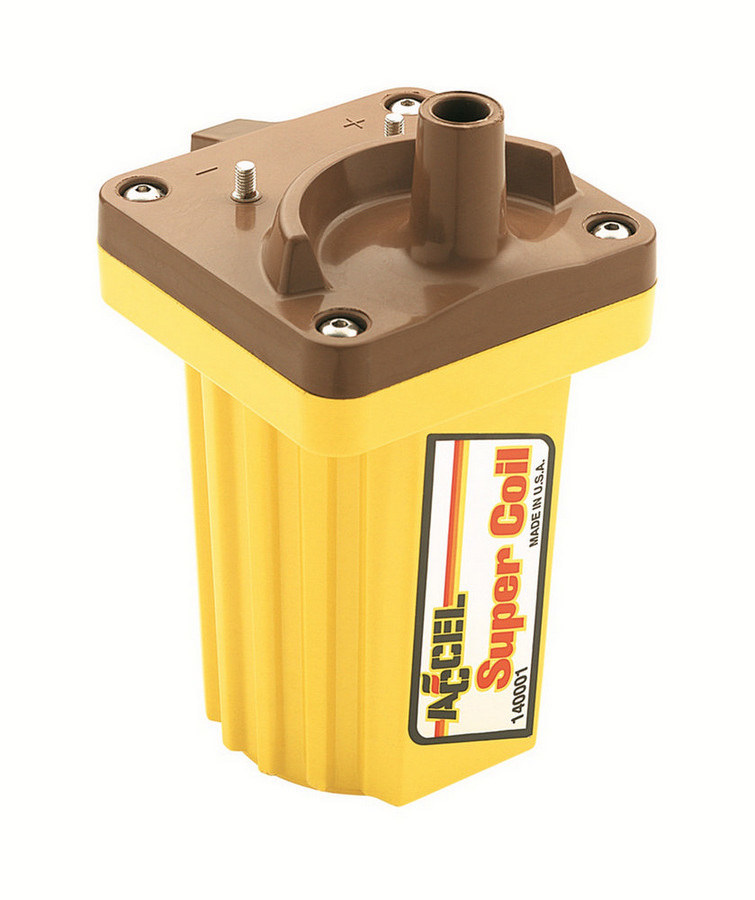

The Accel Super Coil is engineered to deliver faster rise time and longer spark duration, ensuring increased performance across the RPM range. Designed with a robust yellow molded case and integral cooling fins, this oil-filled canister coil offers high thermal conductivity for cooler operation and extended lifespan. Compatible with breakerless electronic ignition systems, it comes complete with mounting hardware, and 0.85 Ohms ballast resistor. Achieve up to 45,000 volts of maximum voltage output for optimal ignition efficiency.
Disclaimer
Ensure compatibility with your vehicle’s ignition system before installation. Professional installation is recommended. Misapplication may cause malfunction or failure.
